Control Devices Heavy Duty Leveler Auto Fill 3/8" Water Float Valve w/ 3" Arm for Pool Pond Spa

Control Devices Heavy Duty Leveler Auto Fill 3/8" Water Float Valve w/ 3" Arm for Pool Pond Spa

Q: My autofill box was installed somewhat high, so the float would likely point toward 7 o'clock when full. Would this still work?

You can adjust the orientation of the arm at the pivot screw near the valve. Doing this can place the float at various angles to raise when the water reaches the desired level.

Q: I was thinking of using a water leveler (rather than a timer) while on vacation for my pool. Does this hook up to a standard water hose with the water valve always turned on and how is the leveler placed into the pool? Thanks!

I agree with Justin that you could rig something up to keep your pool filled. Depending on the type of pool you have, it could be as easy as clamping a reducer/adapter to the side of your pool, attaching the garden hose to one side, and the float to the other. This is a very nice leveler - the best I have used. You could probably get one of the cheaper ones (sub $15) if it is only temporary.

Q: I have this unit and it began leaking after a few short months. Is there a replacement cartridge with rubber washer I can purchase?

Take out the small plunger and clean off the rubber washer scrap it a bit. Take out the rubber washer and use fine sandpaper and lightly sand it Should stop the leak

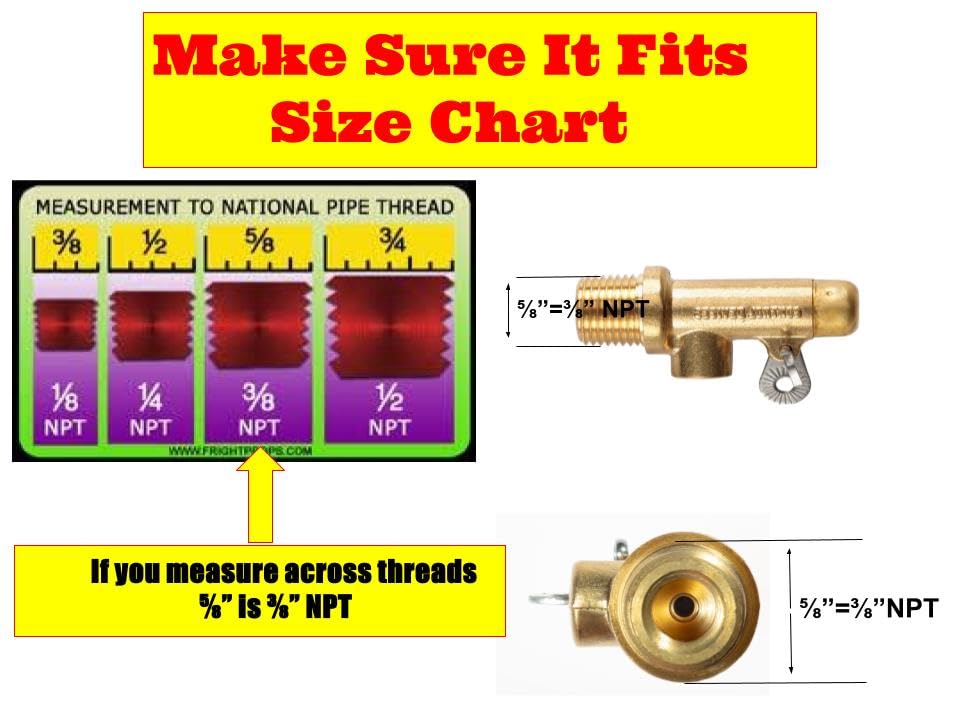

Q: Is this 3/8" Compression threading or standard? Thx

Standard 3/8" pipe thread. I used a galvanized bell (1/2" to 3/8") reducer since my current piping was 1/2". Great product and very reliable. Good Luck!

Product ID: 15129288

Secure Transaction

Details

Material
Brass
Brand
Control
Item dimensions L x W x H
6 x 6 x 6
Exterior Finish
Stainless
Inlet Connection Size
0.38 Inches
Inlet Connection Type
National Pipe

🔧Easy wingnut water level adjustment

⚙️Adjustable flow up to 2.25 GPM

🛠️125 PSI heavy-duty brass

Frequently Bought Together

Control Devices Heavy Duty Leveler Auto Fill 3/8" Water Float Valve w/ 3" Arm for Pool Pond Spa

MP Industries 4059 White Float Valve Assembly Replacement for MP Industries Water Leveler

meekoo Float Ball Valve, 1.57 Inch Male Automatic Fill Feed Humidifier Tank Water with Adjustable Arm for Ponds, Livestock Water Trough, Aquariums, Aquaculture, Hydroponics and Reservoir(2 Pack)

Description

💧 Master your water levels with precision and power!

PRECISION FLOW CONTROL - Adjustable flow rate up to 2.25 GPM lets you fine-tune water levels with professional accuracy.
VERSATILE COMPATIBILITY - 3/8-inch valve with a 3-inch arm fits seamlessly into a wide range of pool, pond, and spa auto-fill systems.
EFFORTLESS CUSTOMIZATION - Wingnut design makes water level adjustments quick and hassle-free—no special tools needed.
BUILT TO LAST UNDER PRESSURE - Premium brass construction rated for 125 PSI ensures unmatched durability and reliability in any pool or spa setup.
ENGINEERED FOR PROFESSIONALS - Specifically designed for automated water level control, delivering consistent performance you can trust.

The Control Devices Heavy Duty Leveler Auto Fill 3/8" Water Float Valve combines premium brass durability rated at 125 PSI with an adjustable flow rate up to 2.25 GPM. Featuring an easy wingnut adjustment and a versatile 3-inch arm, this valve is engineered for reliable, professional-grade water level control in pools, ponds, and spas.

Specifications

Material	Brass
Brand	Control Devices
Item dimensions L x W x H	6 x 6 x 6 inches
Exterior Finish	Stainless Steel
Inlet Connection Size	0.38 Inches
Inlet Connection Type	National Pipe Tapered
Outlet Connection Type	National Pipe Tapered
Maximum Operating Pressure	125 Pound per Square Inch
Number of Ports	1
Outlet Connection Size	0.38 Inches
Manufacturer	Control Devices
UPC	661799079600
Part Number	RM 153
Item Weight	4.2 ounces
Product Dimensions	6 x 6 x 6 inches
Item model number	RM153-20BK
Is Discontinued By Manufacturer	No
Item Package Quantity	1
Batteries Included?	No
Batteries Required?	No

Have a Question? See What Others Asked

My autofill box was installed somewhat high, so the float would likely point toward 7 o'clock when full. Would this still work?

I was thinking of using a water leveler (rather than a timer) while on vacation for my pool. Does this hook up to a standard water hose with the water valve always turned on and how is the leveler placed into the pool? Thanks!

I have this unit and it began leaking after a few short months. Is there a replacement cartridge with rubber washer I can purchase?

Is this 3/8" Compression threading or standard? Thx
